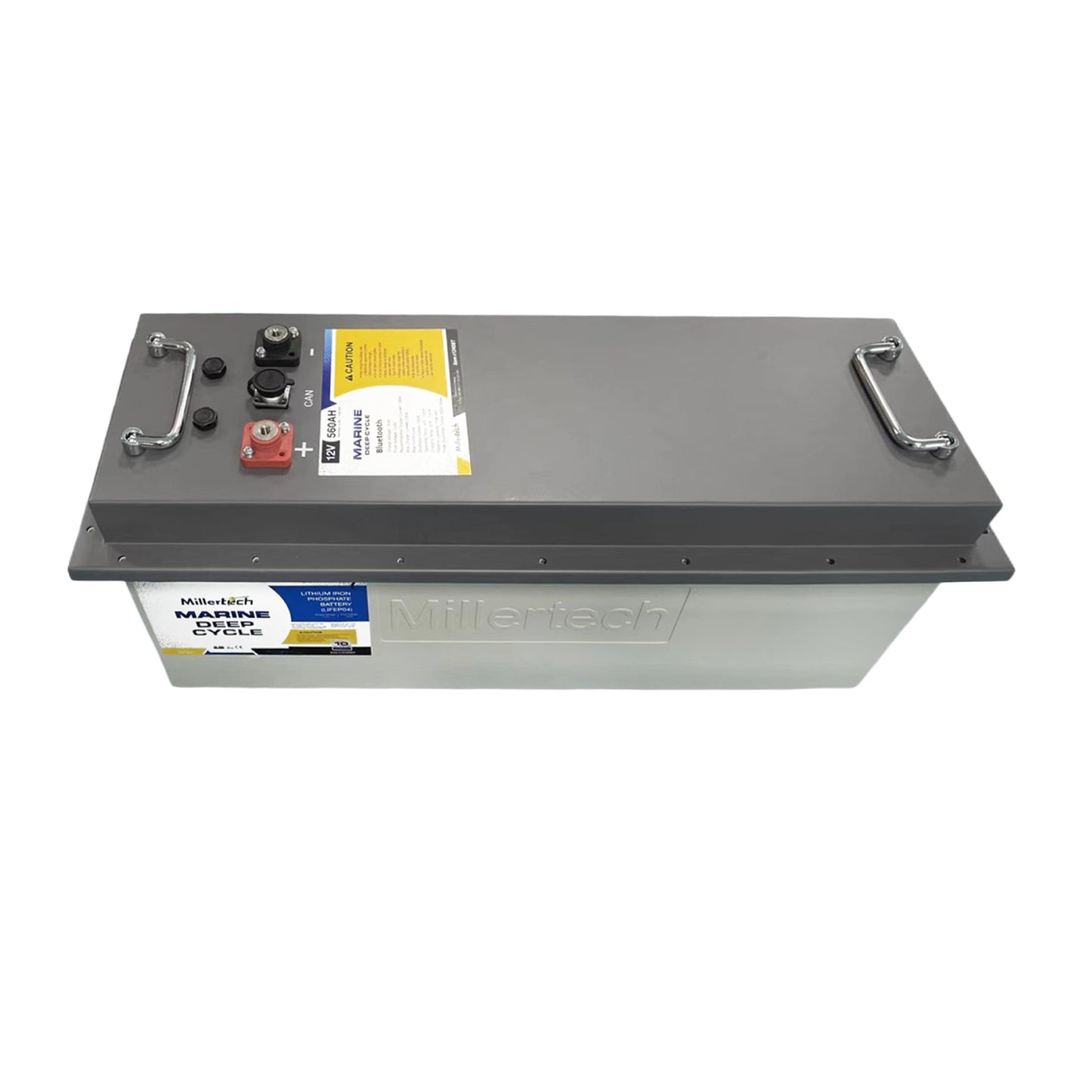

560Ah 12V MARINE Bluetooth Lithium Iron Phosphate (LiFePO4) Deep Cycle House Battery (12560BT)

560Ah 12V MARINE Bluetooth Lithium Iron Phosphate (LiFePO4) Deep Cycle House Battery (12560BT)

Regular price $3,199.00 USD
Regular price $3,399.00 USD Sale price $3,199.00 USD
Sale Sold out
Shipping calculated at checkout.

MillerTech MARINE lithium batteries are the perfect choice for your trolling motor.  They are built with Grade A lithium iron phosphate (LiFePO4 or LFP) cells and are guaranteed for 10 years with a full repair/replace warranty. This model features Bluetooth battery monitoring with a smart phone app to keep track of vitals AND a built-in heater that will automatically raise the battery to a safe internal temperature before the charging process begins.  Each battery will last over 3,000 cycles at the most extreme use: its full discharge rate (1C or 200A) all the way to empty (100% depth of discharge). Or if you are a lighter user it will last well over 8,000 cycles at 40% depth of discharge.

*The ultimate house battery for large boats or RV's*

To download the owner's manual, click here.

To download the bluetooth app, search for MillerTech in the Google Play Store or Apple App Store.


560Ah 12V MARINE Bluetooth LiFePO4 House Battery Specifications:

  • Energy Storage:  7168Wh
  • Cell Grade:  Certified Grade A
  • Max Charge Voltage:  14.6V
  • Cut Off Voltage:  10.5V
  • Continuous Charge/discharge current:  200A
  • Peak Discharge Current:  500A for 5 seconds
  • Marine Cranking Amps (CCA):  1500A
  • Operating Temperature:  -4F to 140F
  • Low Temperature Charging Protection: Cutoff 30F, Reconnect 32F
  • Heating:  Internal, Automatic (ONLY when a charger is connected)
  • Cell Construction:  Nano Prismatic
  • Connection Capability:  4S or 4P
  • Terminals:  M8
  • Weight:  126 pounds
  • Size:  27" x 9.5" x 10"
  • Warranty:  Full 10 years (not prorated)
  • Cycle life @ 100% depth of discharge:  3000+ cycles (>80% capacity remaining)
  • Cycle life @ 40% depth of discharge:  8000+ cycles (>80% capacity remaining)

To download the warranty document, click here.
